NC-100ASD National NC-100ASD

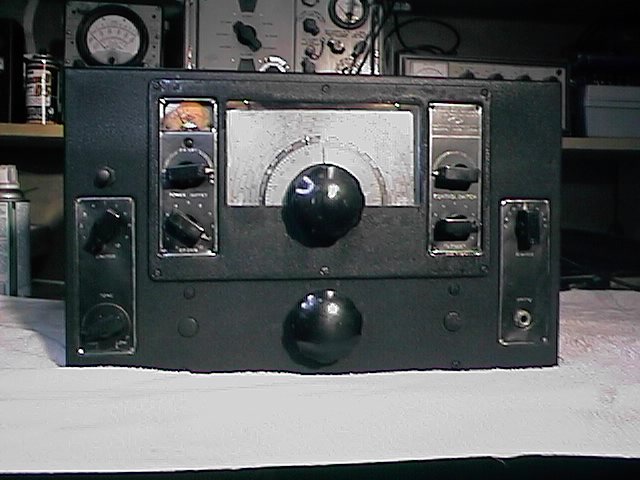

The NC-100ASD is a general coverage type receiver and uses the National "catacomb" type of band switching. In this radio the individual coils for each band are contained on a sliding rack and, instead of being switch selected by taps on a rotary switch, the coils themselves are physically moved into position as the rack slides from side to side under control of the bandswitch. The bandswitch is the large knob in the lower center of the panel and is mechanically attached to a rack and pinion assembly that actually moves the catacomb back and forth.
